Special Equipment for Four-roll Flexible Socket and Spigot Steel Pipes, China Special Equipment for Four-roll Flexible Socket and Spigot Steel Pipes Manufacturers, Suppliers, Factory

I. Details of Socket and Spigot Supporting Equipment:

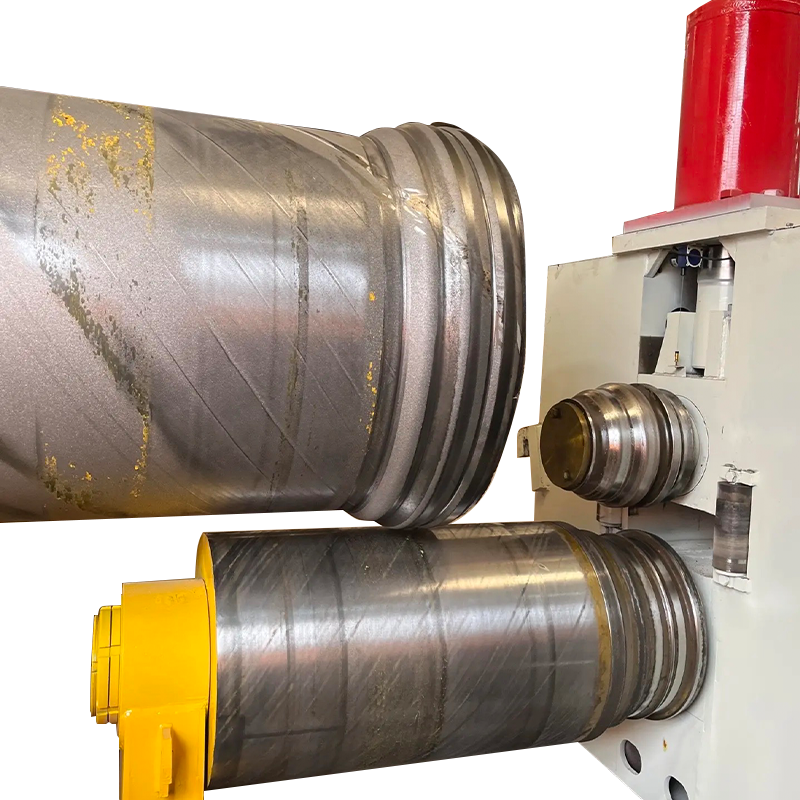

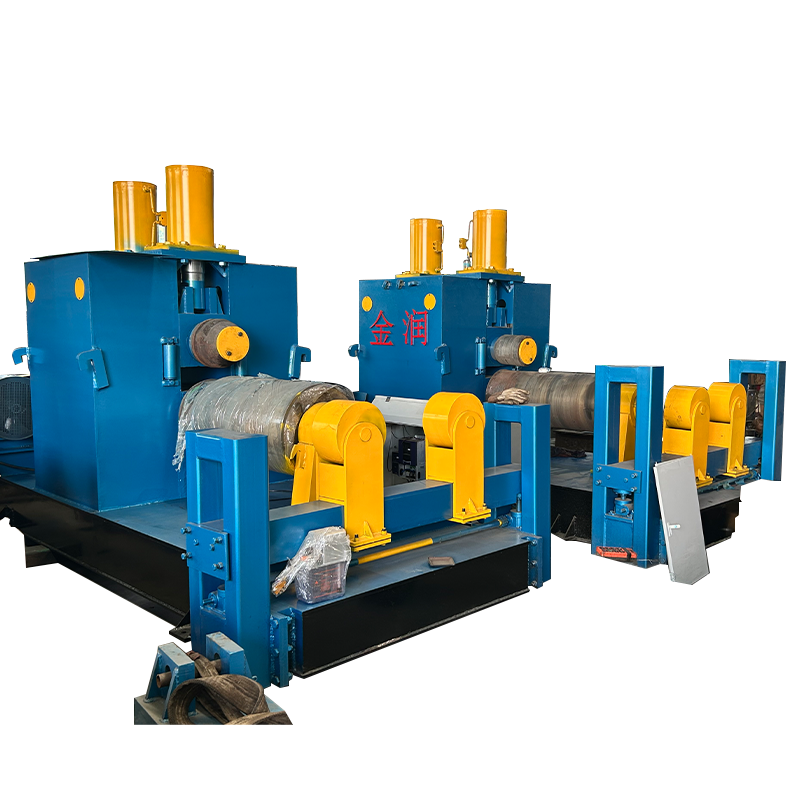

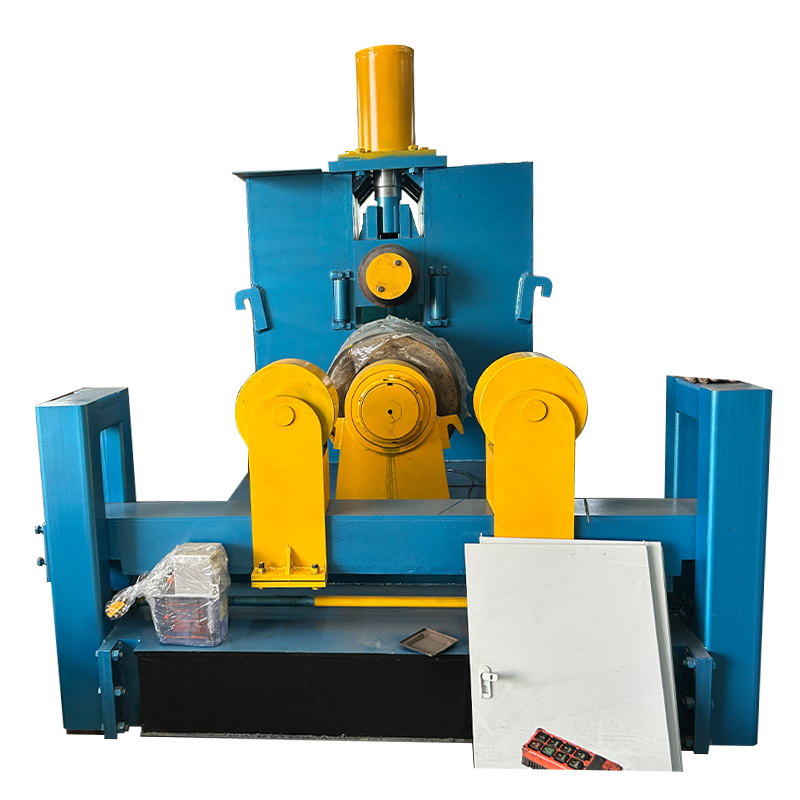

 (1) Socket machine main unit: Material yield limit: σs≤245 MPa

2. Maximum steel pipe length: 12000 mm

3. Minimum steel pipe diameter: Φ630mm

4. Maximum steel pipe diameter: Φ1820mm

5. Maximum socket thickness: 14 mm

6. Working roller diameter: Φ190mm(60CrMoV)- Φ200mm

7. Diameter of the mold roller: Φ305mm-Φ525mm

8. Socket speed: 1- 5m/min

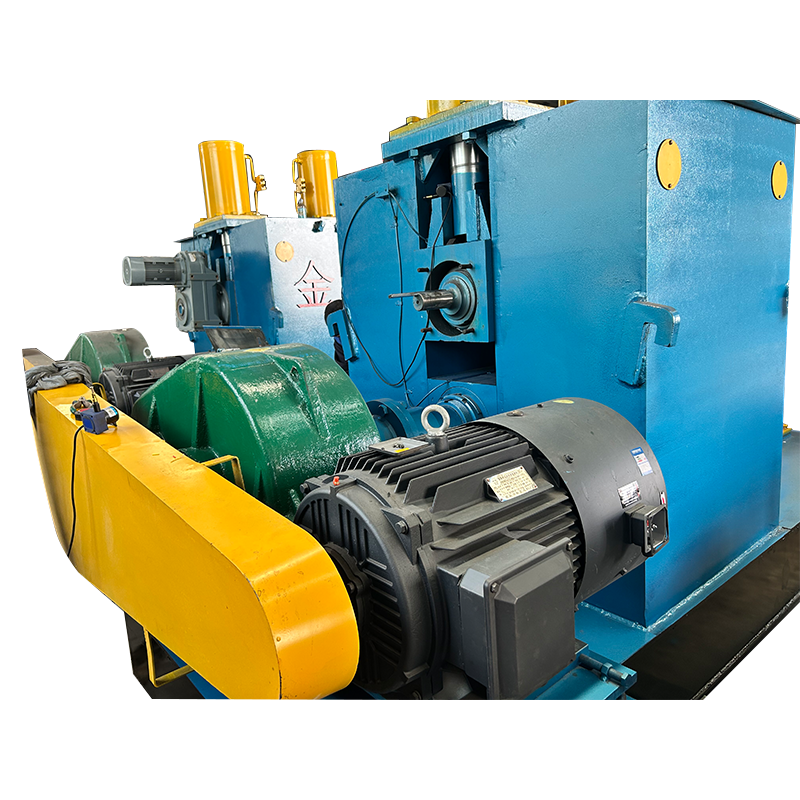

9. Main motor power: 18.5kw

10. Power of the upper roller auxiliary motor: 2.2kw

11. Motor power of the hydraulic station: 7.5kw

12. Cylinder diameter: Φ250mm

13. Cylinder stroke: 300mm

14. Solenoid valve diameter: 6mm

15. Hydraulic system working pressure: 22 MPa
