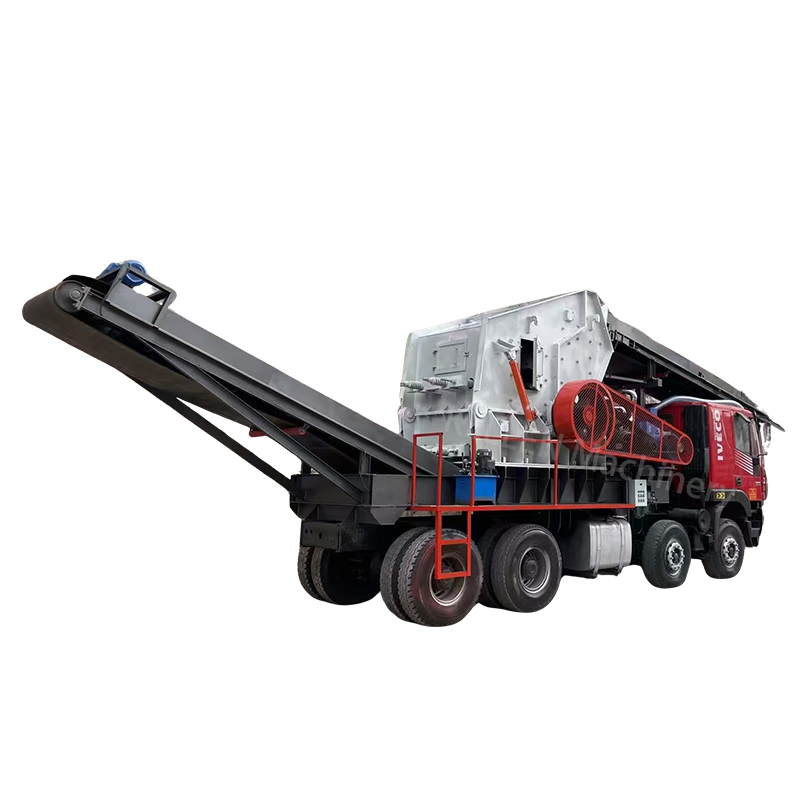

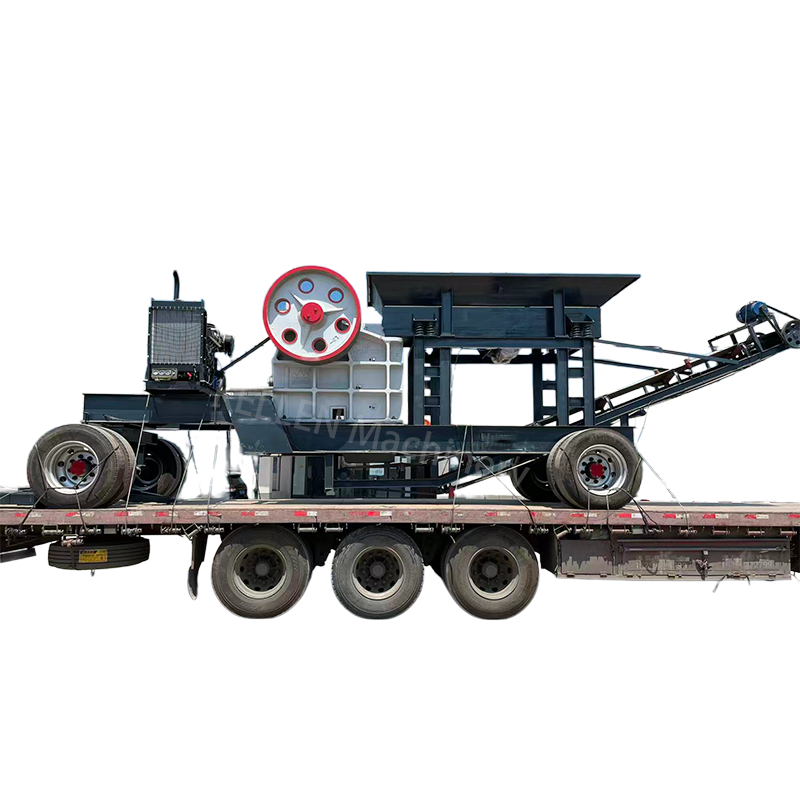

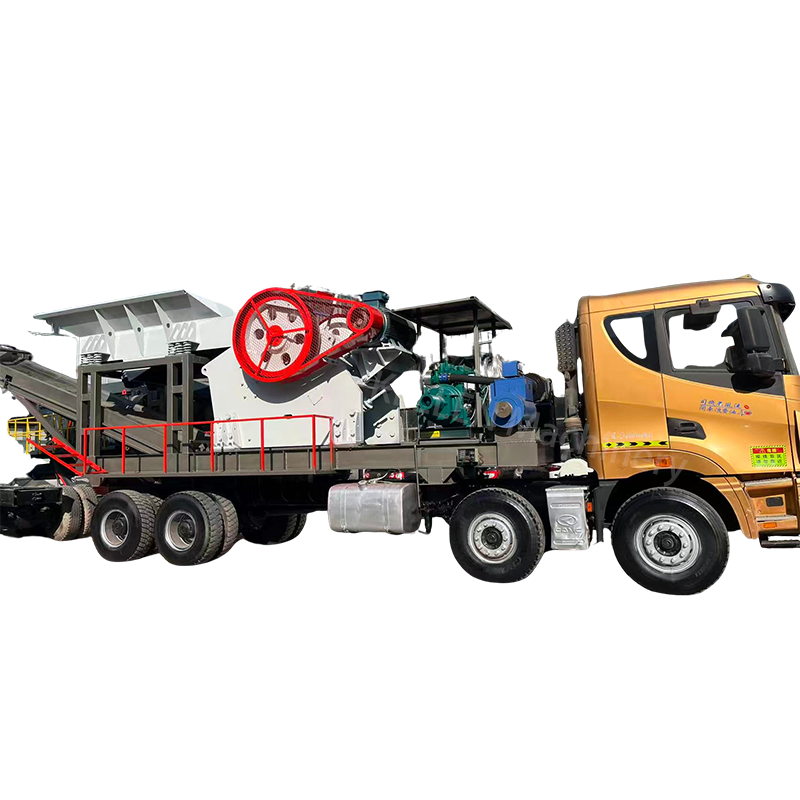

The main crushing equipment of the mobile crush-ing station can choose from jaw crusher, impact crusher, and cone crusher. Materials are evenly con-veyed to the crusher by the feeder. After prelimi-nary crushing by the crusher, a closed-circuit system is formed by the circular vibrating screen to achieve material circulation crushing. Materials that meet the particle size requirements are output by the conveyor, thereby achieving the production goal.
| Model | 800*800 | 1000*1000 | 1200*1200 | 1200*1400 | 1400*1400 |
| Number of hammer heads | 8 | 10 | 12 | 14 | 14 |
| Capacity(t/h) | 70-100 | 90-120 | 130-160 | 170-200 | 190-210 |
| Feeding size(mm) | ≤600 | ≤800 | ≤900 | ≤950 | ≤1000 |
| Power(kw) | 55-75 | 75-90 | 90-132 | 90-132 | 132-160 |
| For stones | Pressure 300Mpa various types of stone | Pressure 300Mpa various types of stone | Pressure 300Mpa various types of stone | Pressure 300Mpa various types of stone | Pressure 300Mpa various types of stone |
